Flame Retardant Cable to IEC60332-3C

300/500V 2C/ 4C/ 8C 0.5 mm2 Flexible Cu/LSZH/TCWB/LSZH

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings.

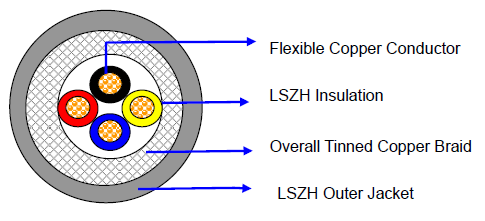

Construction

300/500V 2C/ 4C/ 8C 0.5 mm2 Flexible Cu/LSZH/TCWB/LSZH

Conductor:Stranded flexible copper wire conductor

Insulation:LSZH

Core Identification:

Color coding as per DIN47100

Shield:Overall tinned copper braid

Sheathing:LSZH

Sheath Color: Light grey

Packing: The  cables  are  delivered  on  non-returnable  wooden drums.

Technical data

No.
of
Core
Conductor
Size
and
Stranding
Nom.
Thickness
of
Insulation
Tinned Copper Wire Braided Cable
Nominal
Thickness of
Sheath
Nominal
Overall
Diameter
Approx.
Weight
2 0.5 mm2
(16/0.2mm)
0.45 1.0 6.3 62
4 0.5 mm2
(16/0.2mm)
0.45 1.0 7.2 88
8 0.5 mm2
(16/0.2mm)
0.45 1.0 8.9 135

Physical characteristics

Temperature rating:

During operation: -20 to + 90℃

During Installation: 0 to + 90℃

Minimum bending radius:

During installation: 3 x Overall Diameter

Flexibility:Flexible

Physical characteristics

Temperature rating:

During operation: -20 to + 90℃

During Installation: 0 to + 90℃

Minimum bending radius:

During installation: 3 x Overall Diameter

Flexibility: Flexible

Electrical characteristics

Rated voltage: 300/500V

Max. conductor resistance at 20ºC: 39 ohm/km

Min insulation resistance: ≥500 M Ohm×Km

Test voltage: 2000V
